升降照明方舱是具备升降功能与照明系统的设备，核心在于通过升降装置调节照明高度，搭配高亮度光源，能提供大面积、可调节的光照。其设计紧凑，便于移动部署，适用于大型施工作业、维护抢修、事故处理及抢险救灾等场景，可根据现场需求灵活调整照明范围与高度，为各类夜间或光照不足的作业提供稳定、充足照明，保障作业安全开展。

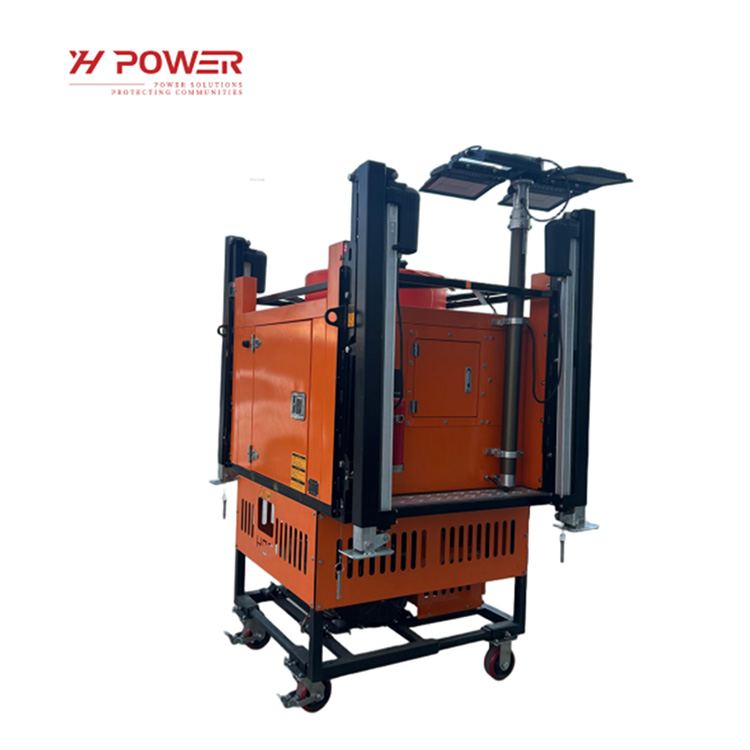

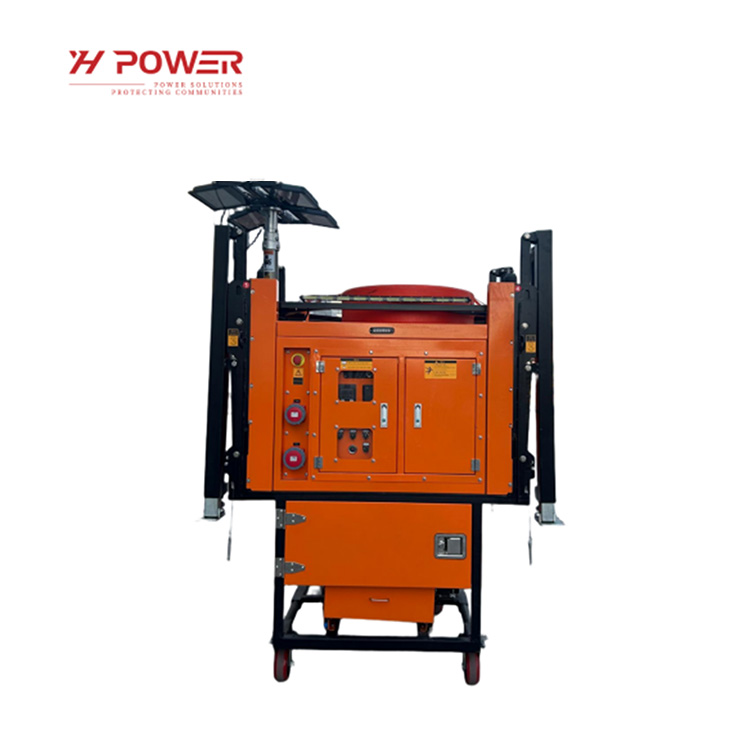

1.The self-unloading drainage cabin consists of an elevated work light, generator set, control box, casters, frame, fuel tank, high-displacement water pump, and an automatic lifting device;

2. Dumping-type intelligent drainage unit execution standards: GB/T755-2019, GB/T12785-2014, GB/T24674-2021;

3. The dimensions for the recovery of the mobile cabin: <1800*1600*2200mm; (Provide a color scan of the original inspection report issued by a third-party institution with CMA certification, and affix the bidder's official seal.). )

4. Net weight of the product: 600Kg; (Provide a color-scanned copy of the original test report issued by a third-party institution with CMA certification, stamped with the bidder's official seal.). )

5. Continuous working time: >8h;

6. Parameters of the Power Module for the Self-Discharging Intelligent Drainage Unit:

6.1. Equipped with a gasoline generator, the unit operates stably and adopts a three-phase four-wire system. It features three interchangeable functions: outdoor lighting, power generation, and high-displacement drainage, suitable for various emergency rescue scenarios. The system includes a visual operation interface, real-time monitoring of operational parameters, one-touch start-stop, runtime statistics, current time display, fault alarm, and other protective functions;

6.2, Rated power of the unit: >18 kW;

6.3 Rated Voltage: AC 380V, 50Hz;

6.4 Fuel Tank Capacity: 45L;

7. Parameters of the Self-Loading and Unloading Module for the Self-Emptying Intelligent Drainage Unit:  10.1. Electric retraction and extension: The system can be operated by a single person to complete loading or unloading actions without the need for auxiliary equipment or tools for fixation. It features two unloading modes: automatic leveling with elevation and individual leg elevation.  (Provide a color-scan copy of the original test report issued by a third-party institution with CMA certification, stamped with the bidder's official seal.). )

7.2. Foot support spread width: >2000mm;

7.3, Lift height above ground: >1000mm;

7.4 Working voltage: DC 12±2V;

7.5, Loading and Unloading Time: 180s;

7.6. Lifting height above ground: >1000mm;

7.7. The loading and unloading support legs can be extended and retracted electrically; the control method for loading and unloading can be operated via panel control or remote control. (Provide a color-scan copy of the original inspection report issued by a third-party institution with CMA certification, stamped with the bidder's official seal.). )

8. Parameters of the Safety Auxiliary Module for the Dumping Intelligent Drainage Unit: (Provide a color-scanned copy of the original test report issued by a third-party institution with CMA certification, stamped with the bidder's official seal.). )

8.1 The fuel gauge has the function of displaying fuel levels;

8.2 Grounding Device: 25-square transparent copper-core flexible wire, grounding rod length not less than

at 80cm;

8.3. Mobile casters: Configured with a one-piece foldable design
